Building a bigger exhaust......pics included - Page 6

kfxguy · 06-12-2012, 10:26 AM

Just tracked my pipe. Says it'll be here tomorrow. Maybe I can get it done by the weekend and make a day trip to the dunes. Yippee!

kfxguy · 06-13-2012, 09:11 PM

Progress.......

yOGi420™ · 06-13-2012, 09:37 PM

Saaweeeet!

kfxguy · 06-13-2012, 10:19 PM

Bringing it to get welded tomorrow. Then I have to make a bracket to the foot peg. I was gonna go test it Sunday but I forgot its fathers day. It tucks in way better than the way it was before. I kinda like it now.

yOGi420™ · 06-13-2012, 10:41 PM

Don't you get to do what you want on fathers day?

kfxguy · 06-13-2012, 11:08 PM

Quote:

Originally Posted by yOGi420™

Don't you get to do what you want on fathers day?

I wish. We are bbqing formy father in law

spize909 · 06-13-2012, 11:54 PM

Quote:

Originally Posted by kfxguy

I wish. We are bbqing formy father in law

I'm stuck going to my in-laws (Oceanside) and celebrating three b-days.....not what I wanted to do either. So much for "my day".

kfxguy · 06-16-2012, 04:59 PM

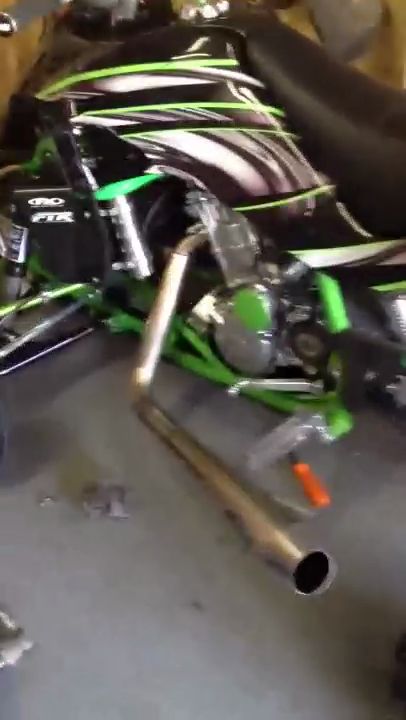

Finished minus a bracket.

**********Here's a video**********

http://i218.photobucket.com/albums/c...y/2fbe398e.mp4

Once I cranked it, it turned gold like the rest. It fits really nice. I'll post close ups of the weld later on. I'm installing a methanol injection system for a buddy on his diesel right now.

1sick470 · 06-16-2012, 05:10 PM

Looks good man. Db is prly gonna be high

kfxguy · 06-16-2012, 08:18 PM

Quote:

Originally Posted by 1sick470

Looks good man. Db is prly gonna be high

YeA, I'm about to go take it for a spin.

kfxguy · 06-16-2012, 08:33 PM

kfxguy · 06-16-2012, 08:50 PM

Well it no doubt hits the limiter in every gear quickly! I can't get traction in the dirt or the street. I can't wait to ride in the sand now! It's weird tho, before I did this, it seemed to not like low rpm. Now it'll putt putt along about like the yoshi. It seems to come onto the cam around 3000rpm and pull like mad to the limiter. I'm really happy with it so far.

1sick470 · 06-16-2012, 09:12 PM

Take a video of it

kfxguy · 06-16-2012, 10:18 PM

Quote:

Originally Posted by 1sick470

Take a video of it

Video posted in post #83

kfxguy · 06-16-2012, 11:40 PM

Here's my mounting bracket for now.

And heres a close up of the weld.
