XC to MX Build

After 3 years of owning this machine I finally have decided to rebuild this XC 2003 KFX 400 as the mx quad of my dreams. (Hopefully this build doesn't take 3 years lol)

I picked this up from a member on here who owned it since day one, raced it a couple seasons and it sat in storage since 2005. The thing was meticulously maintained, came with all stock parts, and all original receipts.

Unfortunately before he sold it the motor overheated and it was found to have very tiny metal shavings in the oil filter which makes me assume something went bad in the bottom end. I haven't decided what I should do with the motor, keep the motor all Yoshimura or go a different route. I know these motors put out massive power back in the day. Its set up with the Yoshimura 449 stroker kit, with piston, crank, gasket, Web cams, Kibble white valves and springs.

I plan on taking the quad to the local mx practice track and running it on the ice in the winter. With this thread I hope to get some ideas, ask some questions, and share this with all of you. Enjoy!
Attached Thumbnails
Click image for larger version

Name:	kfx 1.jpg
Views:	1432
Size:	97.6 KB
ID:	37202   Click image for larger version

Name:	kfx build.jpg
Views:	781
Size:	92.4 KB
ID:	37210
amcf18 and QuadSnort like this.

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LTZ400 is offline
Sponsored Links
Advertisement

post #2 of 58 (permalink) Old 08-04-2015, 08:33 PM
:::Official Spammer:::

zookie400's Avatar

Join Date: Aug 2007
Location: CT
Posts: 4,280
what is you plan for suspension? i would recommend a steering stabilizer if you dont already have one.

My name is Aaron, and I am addicted to speed.
zookie400 is offline
post #3 of 58 (permalink) Old 08-04-2015, 10:38 PM
:::Post Whore:::

lopro's Avatar

Join Date: Aug 2012
Location: Northern Ontario, CANADA
Posts: 2,225
sweet little thing, document the whole rebuild it would be fun to watch this one.


nice shop btw.
LTZ400 and Hunger12gamer like this.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


hotrods +4 with webs cams 539 +3
cylinder works kit bigbore 93.96mm
Ti- wrist pin - vertex piston
Athena sleave bigbore
kibblewhite dual springs
Single Base cometic 3 layer headgasket.
Mikuni 34mm carb
Non-programable DYNA CDI
Trail tech lightweight flywheel
ALBA clutch carbonfibre & race springs
RIK Rings set - High Compression
No reverse, No First gear
lopro is offline

post #4 of 58 (permalink) Old 08-04-2015, 10:39 PM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Quote:
Originally Posted by zookie400 View Post
what is you plan for suspension? i would recommend a steering stabilizer if you dont already have one.
I have a set of 2009 Roll LOBO II +3+1 a arms I picked up from Deuce on here. To make them fit my 03 I have to use 05+ steering stem, 09 spindles, and 09 tie rod ends - I have everything but the tie rod ends.

I picked up Long Travel Elka Stage 4's all around in February when they had that killer deal.

And for the rear I have a LSR +1 or 1.5+" swing arm, elka link, all new carrier, pivot, and suspension bearings, along with a RPM domminator +1 to +4 axle.

As for the stabilizer I have one. Its a low mount made by W.E.R. and is adjustable. I would like to use it but they changed the bottom of the stems in 2005. So I don't know if I can use the same mount, or if W.E.R. has a way to mount it to 05+ stems
Attached Thumbnails
Click image for larger version

Name:	w.e.r.03.jpg
Views:	452
Size:	71.7 KB
ID:	37234   Click image for larger version

Name:	z400_stems.jpg
Views:	365
Size:	51.8 KB
ID:	37242

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LTZ400 is offline
post #5 of 58 (permalink) Old 08-05-2015, 06:07 PM
:::Official Spammer:::

zookie400's Avatar

Join Date: Aug 2007
Location: CT
Posts: 4,280
the extended swinger coupled with the forward arms will make it a little hard to turn, but it will help on the holeshot. with a long wheelbase like that youll really notice it on a tight supercross style track.

i love my LT elkas, i have them front and rear and i have no plans to change them. the customer support and parts availability is awesome too, which is a major bonus for me.

did you gusset the frame yet?

My name is Aaron, and I am addicted to speed.
zookie400 is offline
post #6 of 58 (permalink) Old 08-10-2015, 05:21 PM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Quote:
Originally Posted by zookie400 View Post
the extended swinger coupled with the forward arms will make it a little hard to turn, but it will help on the holeshot. with a long wheelbase like that youll really notice it on a tight supercross style track.

i love my LT elkas, i have them front and rear and i have no plans to change them. the customer support and parts availability is awesome too, which is a major bonus for me.

did you gusset the frame yet?

I never really thought length would be an issue since most MX quads I have seen from back in the day had longer swing arms and +1 forward. I am modeling this after a national quad and I am probably not gonna be on any technical or tight tracks so I should be fine.

The frame is already gusseted, not sure what kit it is, but I was told it was done by the Kawasaki dealer. It hits all of the key points and has more gussets than the Bare Performance kit. Gonna send it out to powder coating sometime this month.

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LTZ400 is offline
post #7 of 58 (permalink) Old 08-19-2015, 10:22 AM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Update.

I am now going through the motor and looking for any serious issues. Again the bike overheated and it was shut off immediately. There were tiny aluminum pieces of metal in the oil filter looking like glitter. I took the side case off by the clutch expecting to find metal down there and did not find anything out of the ordinary. Is it safe to assume that the aluminum shavings are from the piston rings? Or would this be early signs of crank bearing failure?

I pulled the cams out, initially disappointed because they looked like stock cams. I was able to read WEB etched on them with their grind numbers so that was a relief. I am going to pull the entire head off this weekend to see if the piston scratched the walls of the cylinder.

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by LTZ400; 09-11-2015 at 09:56 AM.
LTZ400 is offline
post #8 of 58 (permalink) Old 09-17-2015, 02:09 PM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Yep, found some bad news. The piston scratched the cylinder walls and the motor is shot. I reached out to Yoshimura and parts are no longer available other than the Yoshimura head gasket. The guy I spoke with just told me "maybe its time for you to look for a later model machine?". Lol last I checked they made this quad as of last year, though due to the lack of demand they discontinued this kit and availability of parts have dried up. Trying to figure out what my options are here below:

Rebuild the yoshi motor:
-Buy a new 5+ yoshimura crank from a race shop that I know has a couple left.

-Have the cylinder re-coated by millennium technologies

-Buy the yoshimura head gasket (grab an extra for down the road)

-Have the piston copied (a regular 92mm won't work because it has to have the same location for the wrist pin for the stroker kit, otherwise you will have some clearance problems.)

OR go with a complete new kit? 470 stroker or something comparable, maybe max power?

The yoshimura guy even told me this.. "I'd very careful with other company's big bore an stroker kits. Heard so much bad things like not lasting an blowing up." - I have an idea of what is good and what to avoid. I know there are reliable kits out there if I went in this direction.
Attached Thumbnails
Click image for larger version

Name:	20150913_151834_zpsaufzkizt.jpg
Views:	326
Size:	92.2 KB
ID:	37858   Click image for larger version

Name:	20150913_151743_zpstleplpgx.jpg
Views:	299
Size:	87.2 KB
ID:	37866   Click image for larger version

Name:	20150913_155552_zpst9h9duyv.jpg
Views:	241
Size:	88.7 KB
ID:	37874   Click image for larger version

Name:	20150913_142653_zpslqtkexdh.jpg
Views:	323
Size:	82.3 KB
ID:	37882   Click image for larger version

Name:	20150913_155604_zps0svtf0ls.jpg
Views:	292
Size:	98.3 KB
ID:	37890

Click image for larger version

Name:	20150913_152224_zpsdzpjyff2.jpg
Views:	298
Size:	92.1 KB
ID:	37898

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LTZ400 is offline
post #9 of 58 (permalink) Old 09-17-2015, 03:24 PM
:::Official Spammer:::

amcf18's Avatar

Join Date: Apr 2010
Location: Quartzsite Az,/ Picton, On
Posts: 3,327
Garage
That sucks. I think you would be farther ahead to just do a 470 kit, pistons, cranks and gaskets are plenty, and you aren't going to lose power. Unless you are limited to a 450 cc class, that's a different story..
amcf18 is offline
post #10 of 58 (permalink) Old 12-01-2015, 11:37 PM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Quote:
Originally Posted by amcf18 View Post
That sucks. I think you would be farther ahead to just do a 470 kit, pistons, cranks and gaskets are plenty, and you aren't going to lose power. Unless you are limited to a 450 cc class, that's a different story..
I think I am gonna go the 470 route on this


Still working on the build guys! Just have been busy because I recently moved, and had to temporarily relocate my machines and parts. Though it hasn't stopped me from gathering parts! The frame has not made it to the powdercoater but I have decided to do a textured black look. The scheme is going to be textured black, chrome, and carbon fiber.

I just picked up this Chrome Lonestar sub frame made of chome moly tubing.


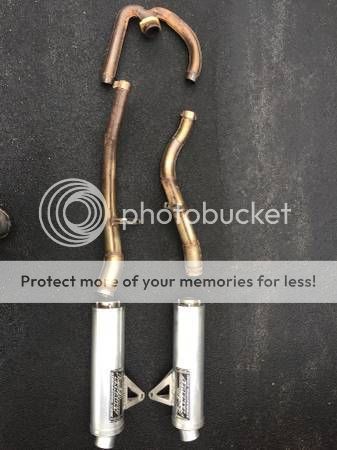

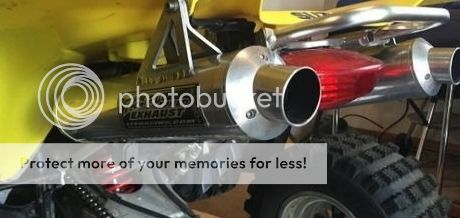

I also scored a Looney Tuned Dual Exhaust locally. I couldn't pass it up, and decided to get it just for the bling factor. I am gonna start looking some ceramic coating price quotes for the pipes.

amcf18 likes this.

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LTZ400 is offline
post #11 of 58 (permalink) Old 12-02-2015, 12:49 PM
:::Eiger Rider:::

Mojave Magic's Avatar

Join Date: Jun 2013
Location: Rustburg Va
Posts: 601
Garage
Ok, I'll bite and ask the stupid question. How are you planning on keeping the rear shock cool enough or properly routing the reservoir line with a dual exhaust setup? Maybe I just can't picture how the pipes get run to the other side.

2001 Mojave sold
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

2002 XC Race prepped Mojave with all the toys sold
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

2003 stock Z400 sold
03 XC Z434 with FCR42, Elkas, Hipers, Roll Design everything and custom hydraulic clutch
05 XC Z400 with Fcr39 ported head, Rekluse, Ars-Fx LT with Stage 5 Elka fronts and Exit rear

GNCC #433
Mojave Magic is offline
post #12 of 58 (permalink) Old 12-02-2015, 02:15 PM
:::Official Spammer:::

amcf18's Avatar

Join Date: Apr 2010
Location: Quartzsite Az,/ Picton, On
Posts: 3,327
Garage
Quote:
Ok, I'll bite and ask the stupid question. How are you planning on keeping the rear shock cool enough or properly routing the reservoir line with a dual exhaust setup? Maybe I just can't picture how the pipes get run to the other side.
This might not help much, but here are some pics of Lolli's cherry bomb.
https://www.suzukicentral.com/forums/...aked-pics.html
amcf18 is offline
post #13 of 58 (permalink) Old 12-02-2015, 02:33 PM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Quote:
Originally Posted by Mojave Magic View Post
Ok, I'll bite and ask the stupid question. How are you planning on keeping the rear shock cool enough or properly routing the reservoir line with a dual exhaust setup? Maybe I just can't picture how the pipes get run to the other side.
When I ordered my stage 4 package from Elka this past spring I specifically asked for the longer line. They said it was not an option, and provided the short line for the rear sub frame. I reached out to Hygear and they are can install a new longer line on it so the reservoir mounts up front.

Here is how it mounts. looks pretty tight, also I wonder if the heat of the pipe could affect the wiring harness.


Last edited by LTZ400; 12-02-2015 at 02:37 PM.
LTZ400 is offline
post #14 of 58 (permalink) Old 12-02-2015, 02:42 PM
:::Eiger Rider:::

Mojave Magic's Avatar

Join Date: Jun 2013
Location: Rustburg Va
Posts: 601
Garage
My older Elka had the long line and it ran right out between the frame and carb where you'll have exhaust pipe in the way. Your kind of limited by the angle of the fitting threaded in to the shock to keep from kinking the hose, so maybe you can have them angle yours a different way than the factory 90 degrees to the side. Straight up may let you poke the line up over the carb and run inside the upper frame rails.

I know my wiring harness would be right in the way too, but its a mess and really needs to be cleaned up this winter, so that may not mean much.
LTZ400 likes this.

2001 Mojave sold
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

2002 XC Race prepped Mojave with all the toys sold
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

2003 stock Z400 sold
03 XC Z434 with FCR42, Elkas, Hipers, Roll Design everything and custom hydraulic clutch
05 XC Z400 with Fcr39 ported head, Rekluse, Ars-Fx LT with Stage 5 Elka fronts and Exit rear

GNCC #433
Mojave Magic is offline
post #15 of 58 (permalink) Old 09-12-2016, 09:45 AM Thread Starter
:::LT250 Rider:::

LTZ400's Avatar

Join Date: Oct 2002
Location: Western, NY
Posts: 834
Garage
Send a message via AIM to LTZ400
Update 9/12/16!!!

This build is a work in progress but I decided to move forward and keep the yoshimura motor. I was able to find a complete kit with low hours and picked it up recently. It came with a ESR intake system, I think this would be a excellent set up though I definitely would want to make a custom splash guard for it. I will need new piston rings, crank bearings, and a gasket set in order to get this motor kit going.



yoshi cams


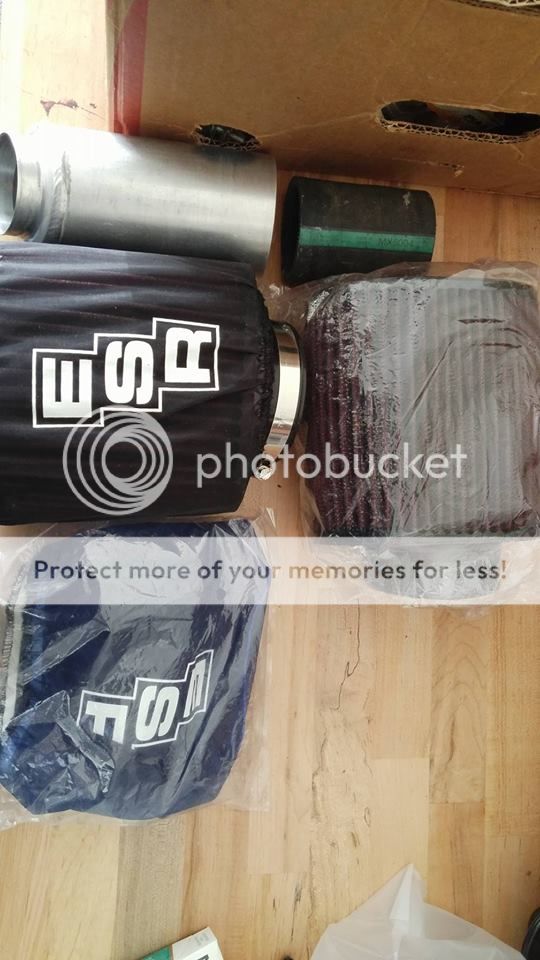

intake setup
amcf18 likes this.

03' Z400 -Full Ti Yoshimura TRS, FCR39, GP3 +2 stem, Elka stage 3's & link, Hermann swing arm, LSR axle, AC nerfs w/IMS healguards & pegs, DG bumper, OMF beadlocks, Maxxis I-Razars, Flexx Bars, QuadTech Shrouds

03' KFX400 - xc to mx rebuild going on here --->
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
LTZ400 is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Suzuki Z400 Forum : Z400 Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
